    The molybdenum products have many special features:
 excellent electric and thermal conductivity, lower thermal
 expansion coefficient, higher bending strength, and so on.
 They are extensively used in silicon control rectifier and
 diode products, high-temperature resistant heating
 containers, and so on.

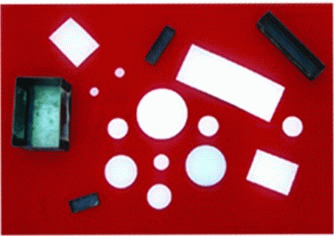

     HIDINS TECHNOLOGY supplies molybdenum disk of different
  specifications, which can be  used in  silicon control
  rectifier products.

 The main features

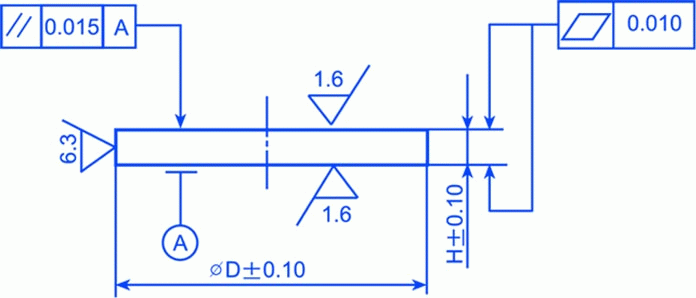

 Diameter D

 4.5~102 (mm)
 Thickness H

 0.25~6.5 (mm)
 Purity

 99.95%

 Thermal expansion
 coefficient (0~700)

 4.7~6.1*10-6/
 Density

 9.90g/cm3
 Bending strength(20)

 >420Mpa
 Resistivity

 6.26*10-6.cm (20)
